DevOps

• UI

  • Grafana - TS + Go

• Monitoring

  • Prometheus - Go + TS

  • InfluxDB Telegraf

  • Grafana Promtail

  • Zabbix - C/PHP/JAVA

    • server - Docker

    • agent

  • Nagios - C

    • Docker

  • Elastic

    • Beats - Go

  • Cacti - PHP

    • alert

  • TICK stack

  • Pandora FMS - PHP/Perl

  • open-falcon - Go + Python Flask

  • Munin - Perl/Shell

  • netdata - C/Python/JS/Shell

• Management

  • Fabric - Python library

  • invoke - Python library

  • Terraform

  • Ansible - Python

  • Puppet - Ruby

  • Chef - Ruby

  • SaltStack - Python

• CI

  • Jenkins - JAVA

  • Travis - Ruby/JS

• SNMP

UI

Grafana - TS + Go

https://github.com/grafana/grafana

• Search dashboards & copy ID to /dashboard/import: https://grafana.com/grafana/dashboards/

• no login: https://grafana.com/docs/grafana/latest/setup-grafana/configure-security/configure-authentication/grafana/#anonymous-authentication

  [auth.anonymous]
  enabled = true
  org_name = Main Org.
  org_role = Viewer
  hide_version = true # default: false

Monitoring

https://en.wikipedia.org/wiki/Comparison_of_network_monitoring_systems

Prometheus - Go + TS

https://github.com/prometheus/prometheus Grafana: https://grafana.com/grafana/dashboards/1860-node-exporter-full/ | {url}?var-node=

InfluxDB Telegraf

https://www.influxdata.com/blog/getting-started-with-influxdb-2-0-scraping-metrics-running-telegraf-querying-data-and-writing-data/

Grafana Promtail

agent : local logs -> loki : https://grafana.com/docs/loki/latest/clients/promtail/

Zabbix - C/PHP/JAVA

https://github.com/zabbix/zabbix

server - Docker

https://www.zabbix.com/documentation/4.0/manual/installation/containers

docker run --name zabbix-appliance -t \
    -p 10051:10051 \
    -p 8083:80 \
    -d zabbix/zabbix-appliance:latest
# Default login: Admin/zabbix

agent

Active : zabbix_agentd: active checks ->  zabbix_server: trapper  :10051
    ServerActive=

Passive: zabbix_server: poller        ->  zabbix_agentd: listener :10050\
    Server=

# Windows agent, run under admininstrator cmd
zabbix_agentd.exe --config zabbix_agentd.win.conf --install

# Debian/Ubuntu
apt install zabbix-agent
service zabbix-agent start

Nagios - C

https://github.com/NagiosEnterprises/nagioscore https://github.com/centreon/centreon https://github.com/NagVis/nagvis

Docker

https://hub.docker.com/r/jasonrivers/nagios/

docker run --name nagios4 --rm -it -p 0.0.0.0:8082:80 jasonrivers/nagios:latest

docker cp nagios4:/opt/nagios/etc ./nagios/etc
docker cp nagios4:/opt/nagios/var ./nagios/var
docker cp nagios4:/opt/nagiosgraph/etc ./nagios/graph_etc
docker cp nagios4:/opt/nagiosgraph/var ./nagios/graph_var

docker run --name nagios4  \
-d --restart unless-stopped \
-v $PWD/nagios/etc/:/opt/nagios/etc/ \
-v $PWD/nagios/var:/opt/nagios/var/ \
-v $PWD/nagios/graph_etc:/opt/nagiosgraph/etc \
-v $PWD/nagios/graph_var:/opt/nagiosgraph/var \
-v $PWD/nagios/custom-plugins:/opt/Custom-Nagios-Plugins \
-p 8082:80 jasonrivers/nagios:latest

docker exec -it nagios4 htpasswd /opt/nagios/etc/htpasswd.users nagiosadmin
docker exec -it nagios4 cat /opt/nagios/etc/objects/contacts.cfg
docker exec -it nagios4 grep ^cfg_ /opt/nagios/etc/nagios.cfg
docker restart nagios4 && docker logs nagios4

# nrpe
NAGIOS_SERVER=1.2.3.4
docker run -d --restart unless-stopped \
    -v /:/rootfs:ro -v /var/run:/var/run:rw -v /sys:/sys:ro \
    -v /var/lib/docker/:/var/lib/docker:ro \
    --privileged --net=host --ipc=host --pid=host \
    -e NAGIOS_SERVER="$NAGIOS_SERVER" \
    --name nagios_nrpe \
    mikenowak/nrpe

Elastic

Beats - Go

https://www.elastic.co/products/beats https://github.com/elastic/beats

Filebeat    Log Files Beats
Metricbeat  Metrics Beats
Packetbeat  Network Data Beats
Winlogbeat  Windows Event Logs Beats
Auditbeat   Audit Data Beats
Heartbeat   Uptime Monitoring

Cacti - PHP

https://github.com/Cacti/cacti

https://hub.docker.com/r/smcline06/cacti

docker pull smcline06/cacti:latest

alert

https://github.com/Yelp/elastalert https://github.com/sirensolutions/sentinl

https://sematext.com/blog/x-pack-alternatives/

TICK stack

https://gist.github.com/travisjeffery/43f424fbd7ac677adbba304cef6eb58f

Component	Role
Telegraf	Data collector
InfluxDB	Stores data
Chronograf	Visualizer
Kapacitor	Alerter

Pandora FMS - PHP/Perl

https://github.com/pandorafms/pandorafms#screenshots

# Auto docker
curl -sSL http://pandorafms.org/getpandora  | sh  # Auto, or manually below

# Manually
docker run \
    --name pandora-mysql \
    -e MYSQL_ROOT_PASSWORD=AVeryStrongRootPassword \
    -e MYSQL_DATABASE=pandora \
    -e MYSQL_USER=pandora \
    -e MYSQL_PASSWORD=pandora
    -d pandorafms/pandorafms-mysql:6

docker run -p 41121:41121 \
    --link pandora-mysql:mysql \
    -d pandorafms/pandorafms-server:6

docker run \
    -p 80:80 -p 8022:8022 -p 8023:8023 \
    --link pandora-mysql:mysql \
    -d pandorafms/pandorafms-console:6

apt install -y pandorafms-agent

open-falcon - Go + Python Flask

https://github.com/open-falcon/falcon-plus/tree/master/docker v0.3: May 30, 2019

https://github.com/open-falcon/falcon-plus/blob/master/docker/README.md

Munin - Perl/Shell

networked resource monitoring tool http://munin-monitoring.org/ http://guide.munin-monitoring.org/en/latest/tutorial/index.html

netdata - C/Python/JS/Shell

https://github.com/firehol/netdata (with screenshots) https://github.com/firehol/netdata/wiki/Installation

bash <(curl -Ss https://my-netdata.io/kickstart-static64.sh)

Management

Fabric - Python library

https://github.com/fabric/fabric Fabric is a high level Python (2.7, 3.4+) library designed to execute shell commands remotely over SSH, yielding useful Python objects in return.

Fabric (1.x and earlier) was a hybrid project implementing two feature sets: task execution (organization of task functions, execution of them via CLI, and local shell commands) and high level SSH actions (organization of servers/hosts, remote shell commands, and file transfer).

invoke - Python library

https://github.com/pyinvoke/invoke When planning Fabric 2.x, having the “local” feature set as a standalone library made sense, and it seemed plausible to design the SSH component as a separate layer above. Thus, Invoke was created to focus exclusively on local and abstract concerns, leaving Fabric 2.x concerned only with servers and network commands.

Terraform

• https://github.com/hashicorp/terraform

• Self Managed, always free: https://developer.hashicorp.com/terraform/downloads

Ansible - Python

https://github.com/fzinfz/ansible

Puppet - Ruby

https://hub.docker.com/u/puppet/ https://puppet.com/products/why-puppet/puppet-enterprise-and-open-source-puppet

Chef - Ruby

https://hub.docker.com/r/chef/chef/

SaltStack - Python

https://github.com/saltstack/salt https://hub.docker.com/r/saltstack/

Agentless: https://docs.saltstack.com/en/latest/topics/ssh/index.html

CI

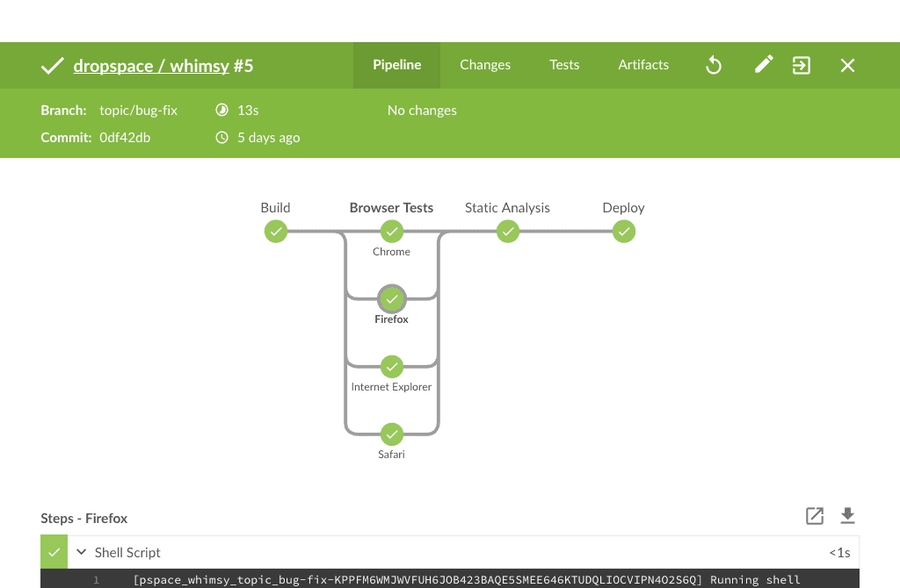

Jenkins - JAVA

https://github.com/jenkinsci/jenkins

https://github.com/jenkinsci/docker/blob/master/README.md#usage

docker run -d -p 8089:8080 -p 50000:50000 jenkins/jenkins:lts
docker exec jenkins cat /var/jenkins_home/secrets/initialAdminPassword

docker run jenkins/jnlp-slave -url http://jenkins-server:port <secret> <agent name>

https://wiki.jenkins.io/pages/viewpage.action?pageId=75893612

Open a browser on the slave machine and go to the Jenkins master server url (http://yourjenkinsmaster:8080).
Go to Manage Jenkins > Manage Nodes, Click on the newly created slave machine. You will need to login as someone that has the "Connect" Slave permission if you have configured global security.
Click on the Launch button to launch agent from browser on slave.

run on all nodes: elastic-axis

Travis - Ruby/JS

https://github.com/travis-ci/travis-ci

SNMP

https://en.wikipedia.org/wiki/Simple_Network_Management_Protocol

v1: Authentication of clients is performed only by a "community string", in effect a type of password, which is transmitted in cleartext. v2c comprises SNMPv2 without the controversial new SNMP v2 security model, using instead the simple community-based security scheme of SNMPv1. incompatible with SNMPv1 in two key areas: message formats and protocol operations. v2u: greater security than SNMPv1, but without incurring the high complexity of SNMPv2. v3 primarily added security and remote configuration enhancements to SNMP.

the agent connects to the server on port 162 port 161 on the agent side is used for queries
